Start to finish

Firebox Door & Facias
Stainless Chains for the soon to be Jarrah shelf

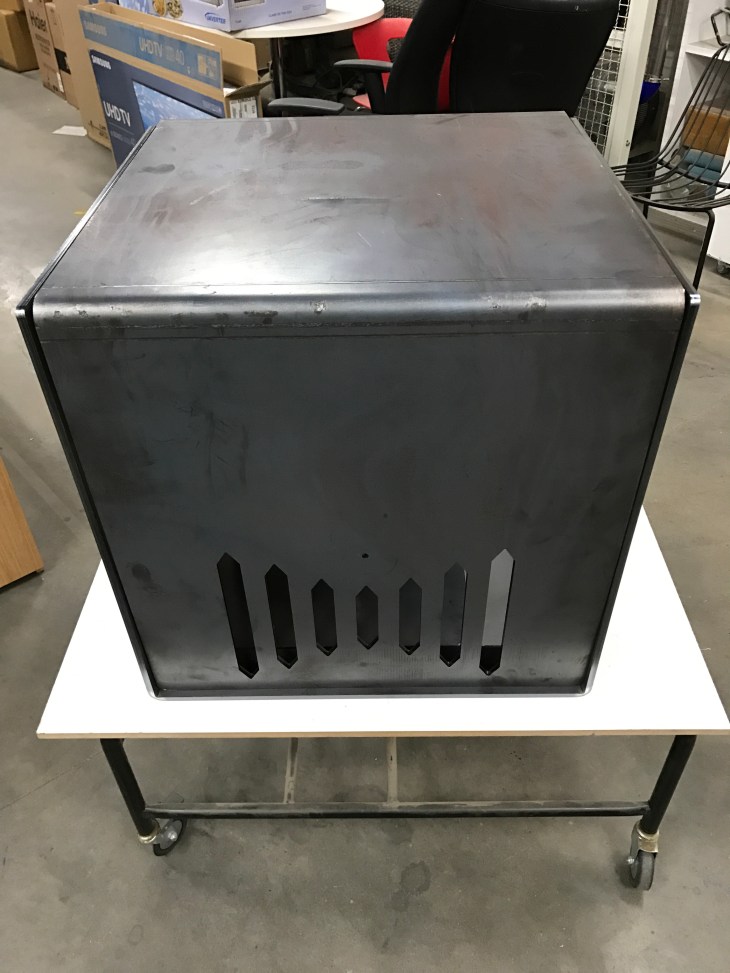

One C-Section of the firebox
Firebox getting ready to be welded together

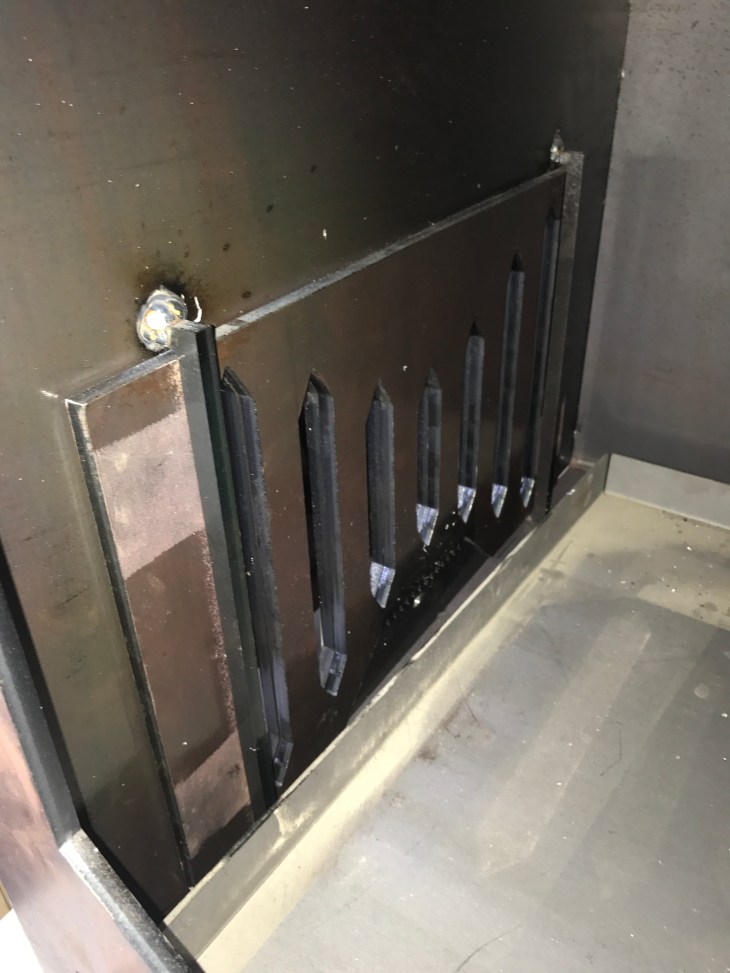

Custom unique Vent with a hidden gear system designed by JG
Vent welded into place
Ash catcher
Firebox door & the Top Risers

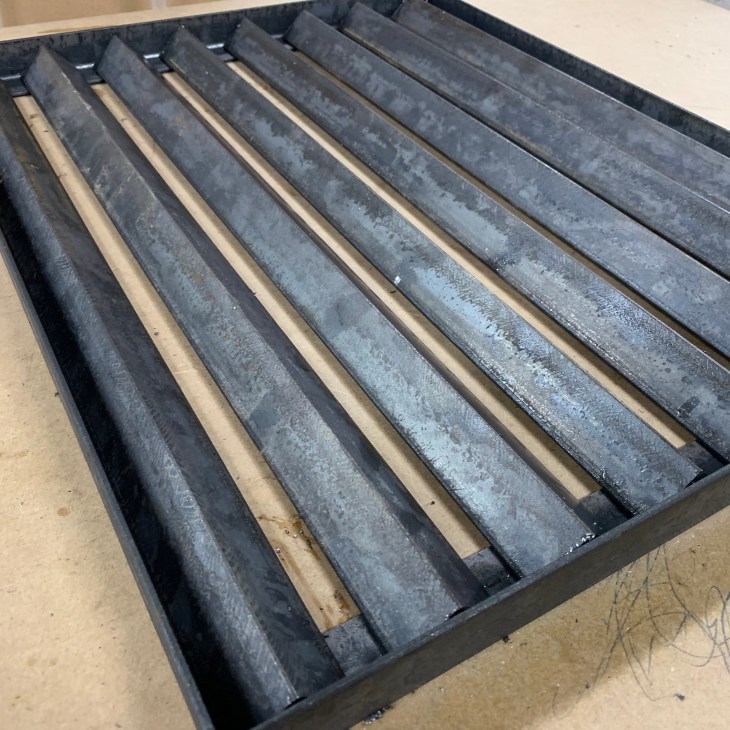

Fire grate designed for ash to easily fall down into the Ash catcher below
Firebox welded together & door almost complete
6mm Thick Baffle plate

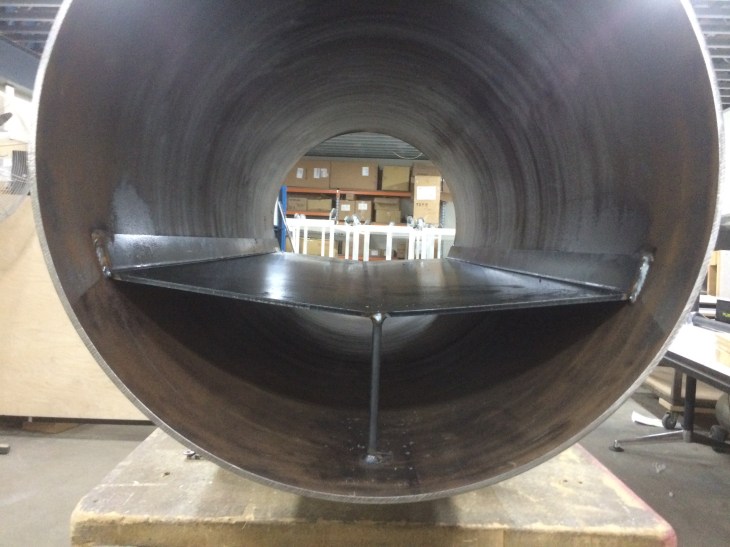

Baffle plate in position
Main chamber ends
Custom cut hinges
Lining the shelf supports up to be welded

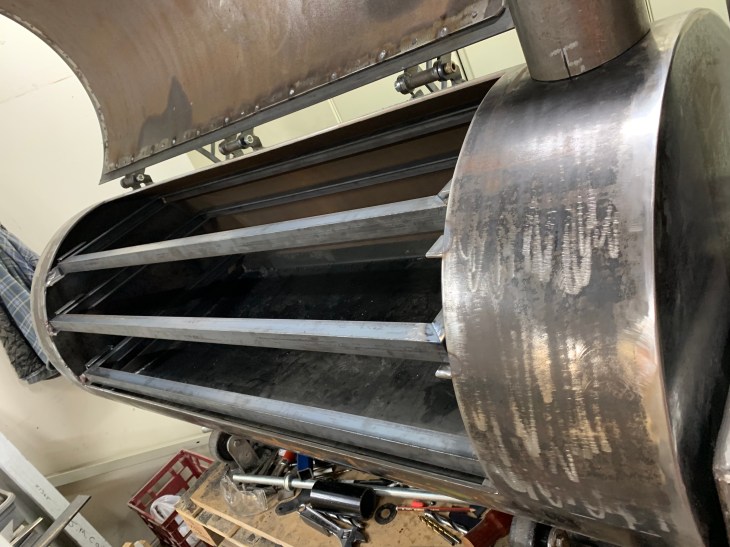

Testing the shelves before welding the mesh in
JG BBQ Base support
Time to weld the chamber to the firebox
Weight of Chamber and Firebox without the base frame or Jarrah shelf

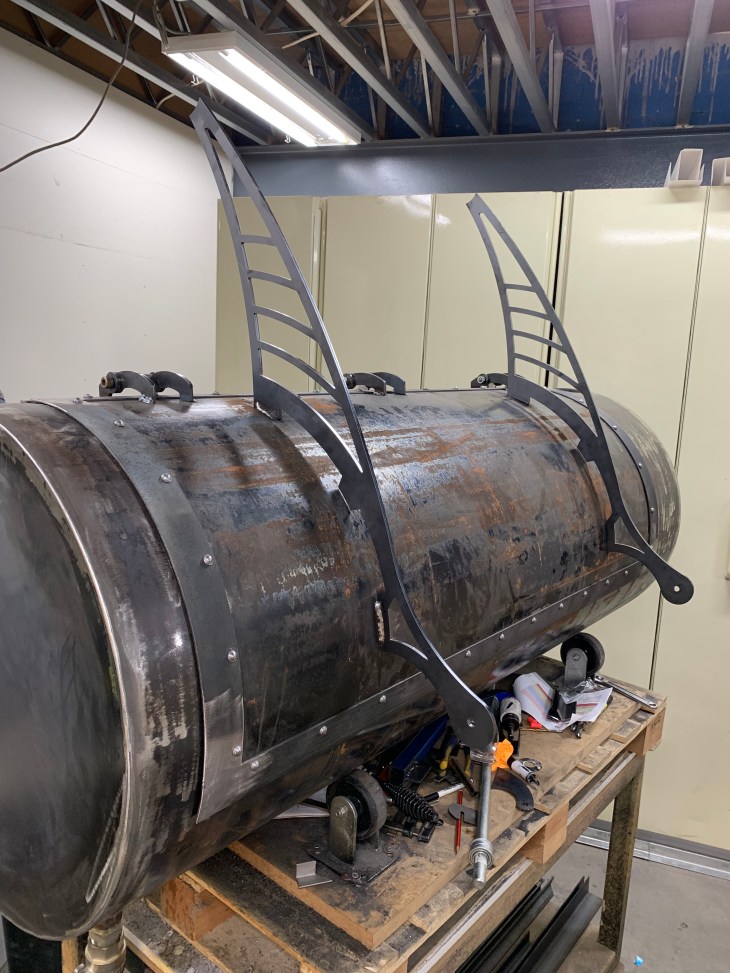

Risers sitting pretty after getting a weld into position
Testing out the special bearing ended handle
Chimney stack
Lower section of the chimney stack
Lower frame starting to take shape

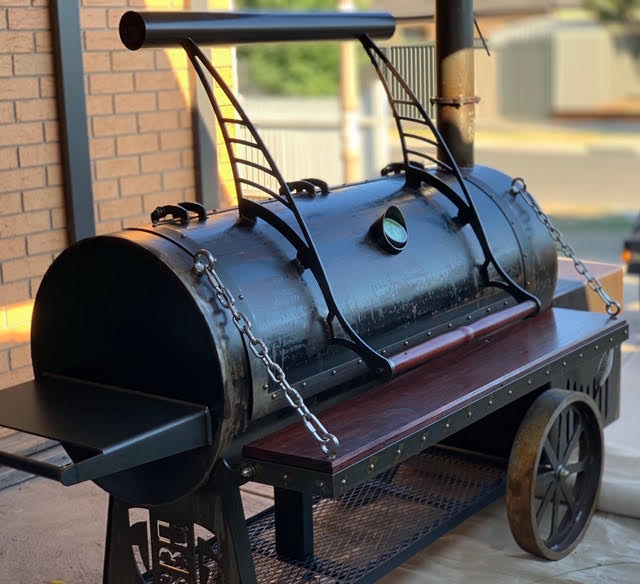

Jarrah Shelf & handle in there final resting place
Tel-Tru thermometer housing to keep it safe
Hidden Bearings for a smooth lift

This slab of Jarrah has a little history to it. This once belonged to my great grandfather who used it to help form part of his timber work top in the shed.
He then passed it down to my grandfather who then passed it down to my father who also used it on his work bench where I have many fond memories growing up building plenty of billy karts & other items on top of this slab of jarrah.
As I grew older my father passed it down to me and I too used it to form a work bench for many years.
I then moved houses and the work bench was no longer required so the bench was dismantled but I had to hold on to this beautiful piece of Jarrah to one day do something with.
Many years passed and I found a new passion in bbq and knew exactly what to do with it. I carefully machined it down to what you now see protected in a steel studded frame where one day, I hope to pass not only the slab but the whole smoker down to my children.
Short video on my custom Firebox build
The stack coming together nicely

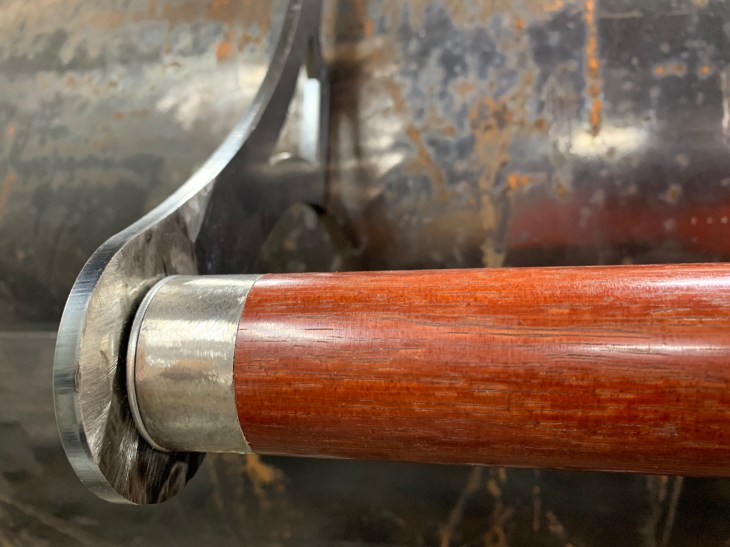

Custom handle with smooth bearing ends designed by JG
Testing the baffle plates grease trap disposal
First test run
Loving that clean burn

Bottom shelf loaded with four 7-8kg briskets
